CE Series process pumps with top centreline discharge and self-venting casing — service the complete wet end without disturbing pipe connections.

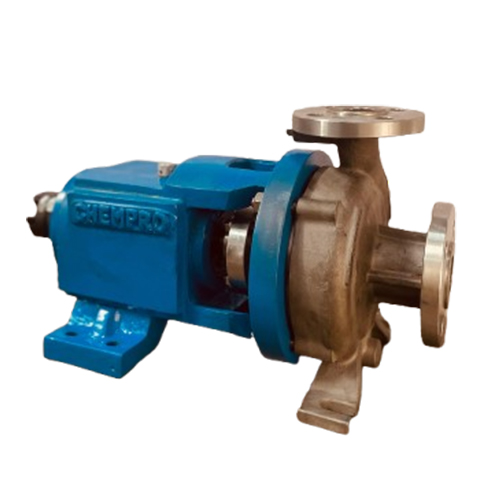

Chempro CE Series centrifugal back pull-out pumps feature top centreline discharge and a self-venting casing. The back pull-out mechanism permits quick maintenance without disturbing pipe connections, while the foot-mounted casing resists misalignment and pipe-load distortion.
The complete rotating assembly withdraws from the rear — inspect or replace the impeller and seal while the casing stays bolted in the line.
Open impeller with partial shrouds and back pump-out vanes blocks solids infiltration, and large flow passages support efficient slurry transportation.
| Parameter | Details |
|---|---|
| Flow Capacity | 1 – 400 m³/hr |
| Head Range | 5 – 100 meters |
| Shaft Deflection | ≤ 0.05 mm |
| Flanges | ANSI B-16.5 Class 150 (Class 300 up to 2550 kPa) |
| Materials | CS · SS-304 / 316 / 316L · Hastelloy A/B/C · CD4MCu |
* Specialised alloys available on request. Multiple sealing configurations supported.
Share your required flow rate, fluid composition or application and get the right machine, price and delivery for your plant.
