Gearless 1:1 direct coupling transmission engineering maximizing efficiency up to 100% with absolute zero belt power losses.

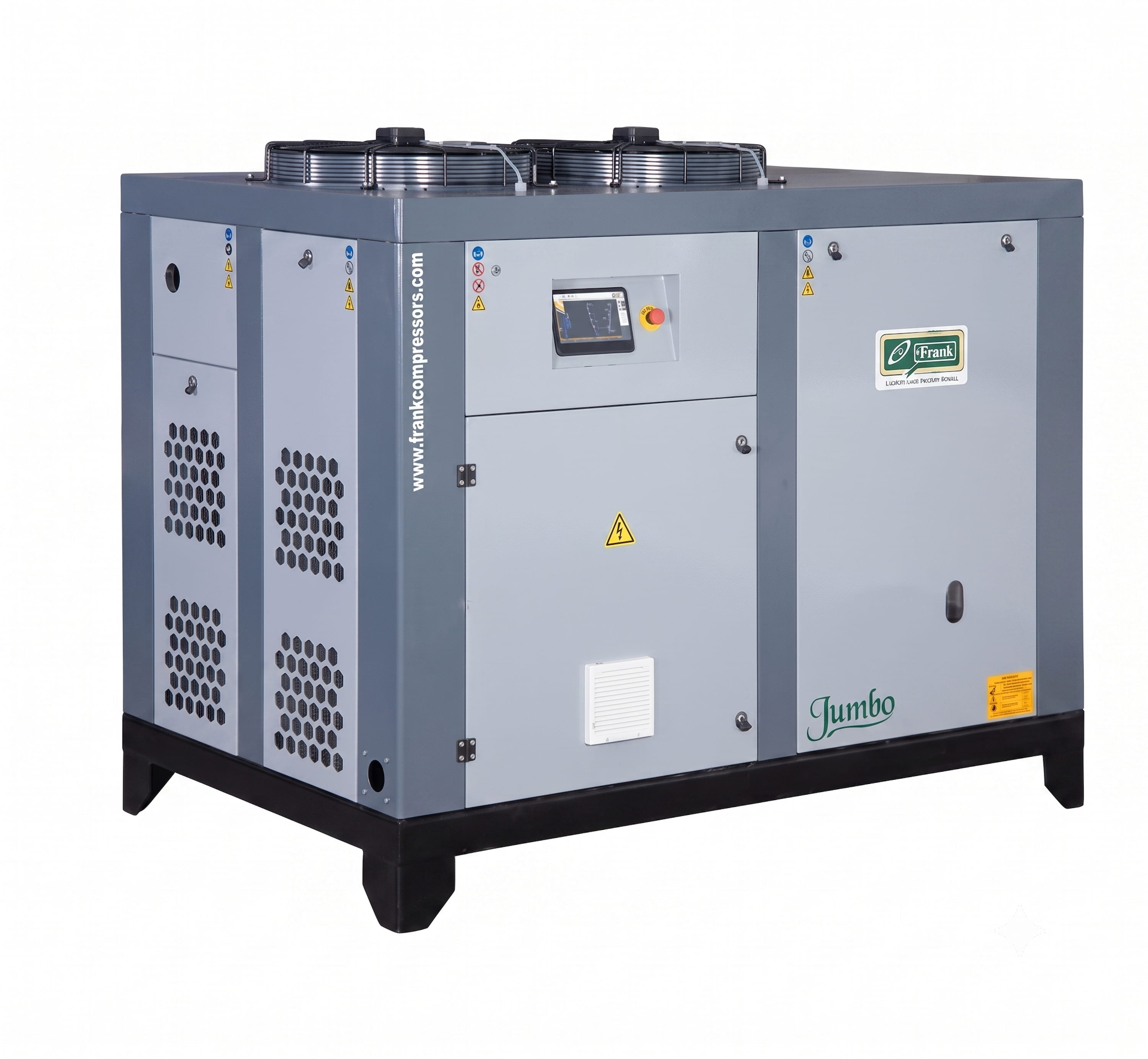

Our Jumbo & Jumbo HD series screw air compressors are engineered to withstand continuous heavy industrial operation under highly challenging environmental conditions. The gearless coupling minimizes maintenance, cuts operation expenses, and ensures simple installation footprints.
The direct connection between the large low-speed (2950 RPM) airend and the motor effectively eliminates transmission shocks, noise levels, and vibration wear. Reduces the overall component count for industry-grade safety.
| Model | Pressure | Motor (HP/kW) | Flow (CFM) | Dimensions L×W×H (mm) |
|---|---|---|---|---|
| Jumbo HD - 25 | 7 kg/cm² | 25 HP / 18.5 kW | 118 | 1350 × 900 × 1250 |
| Jumbo HD - 40 | 7 kg/cm² | 40 HP / 30 kW | 205 | 1592 × 1233 × 1616 |
| Jumbo HD - 100 | 7 kg/cm² | 100 HP / 75 kW | 523 | 2170 × 1311 × 1771 |
| Model | Pressure | Power (HP) | Flow (CFM) | Weight (kgs) |
|---|---|---|---|---|
| Jumbo - 30 / 40 | 9 kg/cm² | 30 / 40 HP | 123 / 178 | 510 / 900 |
| Jumbo - 50 / 60 | 9 kg/cm² | 50 / 60 HP | 225 / 268 | 900 / 900 |
| Jumbo - 75 / 100 | 9 kg/cm² | 75 / 100 HP | 339 / 450 | 1595 / 1595 |
| Jumbo - 125 | 8-10-12 | 125 HP | 566-516-435 | 1595 |
| Jumbo - 150 / 180 | 8-10-12 | 150 / 180 HP | 700 / 850 Max | 2500 / 2600 |
| Jumbo - 220 / 250 | 8-10-12 | 220 / 250 HP | 956 / 1062 Max | 3150 / 3330 |
* Every system is custom optimized to maintain peak performance thresholds dynamically at full line loads.
Share your HP, pressure or application and get the right machine, price and delivery for your plant.
